Multi-Filar Coil Winding Machine

EBD Coil Winding technology is developed specifically to wind micro coils for minimally invasive medical devices. Our coil winders can wind coils down to .001″ diameter wire on a .010″ mandrel using our innovative closed-loop filar tension control system. The machine flexibility enables the filar tension to be recipe controlled from 5 grams to 600 grams during the entire wind. The medical-grade precision of our machines allows for the advanced production of catheters.

Multi-Filar Coil Winding

The multi-filar coil winder machine uses a camera vision system to wind fine filaments around a spinning mandrel and produce multi-filar micro coils with up to 4 filars.



Single-Filar Coil Winding

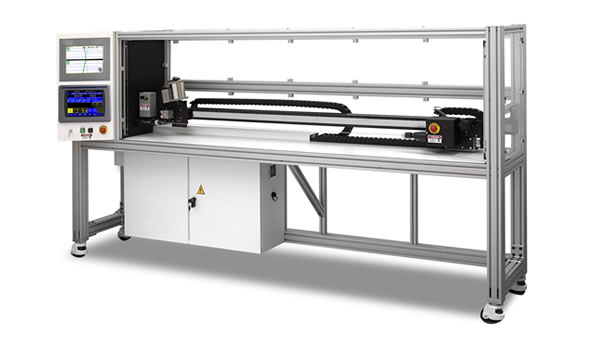

EBD 503  Single Vision Coil Winder offers precision micro coil winding from a large DIN 80 supply spool. By improving the accuracy of all controlled parameters, this machine can increase productivity through reduced rejects and faster wind speeds.
